Wilo Yonos Pico 25/1-6

Manufacturer: Wilo

Wilo Yonos Pico 25/1-6

(0 review) | Write A Review

120,000AMD

Product Code: 0066

Category: Pumps

Availability: In Stock

Yonos Pico 25/1-6 is a compact and highly efficient circulation pump designed for heating and hot water supply systems. This pump from Wilo is reliable, durable and energy efficient. The Yonos Pico model is equipped with a modern low-noise motor, which ensures comfortable operation in domestic and commercial systems.

Qty

ADD TO CART

Type: pump
Color: green
Height: 81 mm
Length: 180 mm
Width: 160 mm
Mounting length L0: 180 mm
Weight: 2.1 kg
Quantity per pallet: 202
Insulation class: F
Rated power of electric motor P2: 30 W
Minimum inlet pressure at liquid temperatures of 50°C: 0.5 m
Minimum inlet pressure at liquid temperatures of 95°C: 3 m
Minimum inlet pressure at liquid temperatures of 110°C: 10 m
Temperature range at max. ambient temperature +40°C: -10/+95°C
Temperature range at max. ambient temperature +25 °C: -10/+110 °C
Current consumption I: max.0.44 A
Rotation speed N: 800-4700 rpm
Power consumption P1: 4-40 W
Energy efficiency index (EEI): ≤0.20
Max. permissible working pressure Pmax: 6 bar

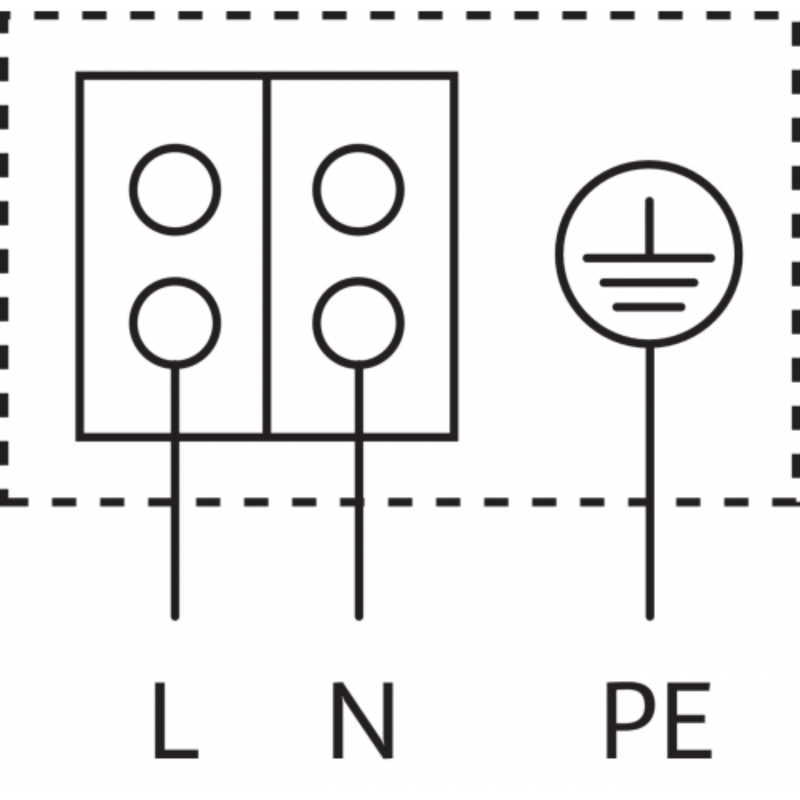

Network connection: 1~230 V, 50/60 Hz
Threaded entry for cable Connector: 11 PG
Protection class: IP X2D
Pump shaft: stainless steel
Pump body: gray cast iron (EN-GL200)
Bearings: metal graphite
Impeller: synthetic material (polypropylene -40 GF)
