Type: pump
Color: green, black
Height: 245 mm
Length: 180 mm
Width: 184 mm
Weight: 6.3 kg
Quantity per layer: 16
Insulation class: H
Minimum inlet pressure at liquid temperatures of 50°C: 0.5 m
Minimum inlet pressure at liquid temperatures of 95°C: 5 m
Minimum inlet pressure at liquid temperatures of 110°C: 11 m
Minimum inlet pressure at liquid temperatures of 130°C: 24 m
Temperature range at max. ambient temperature of +40°C: -20/+130°C (in short-term mode 2 h: +140°C)
Temperature range at max. ambient temperature +40°C when used with the Wilo-C protection module: -20/+110°C
Current at 1~230 V I: 1.72/1.87/1.90 A

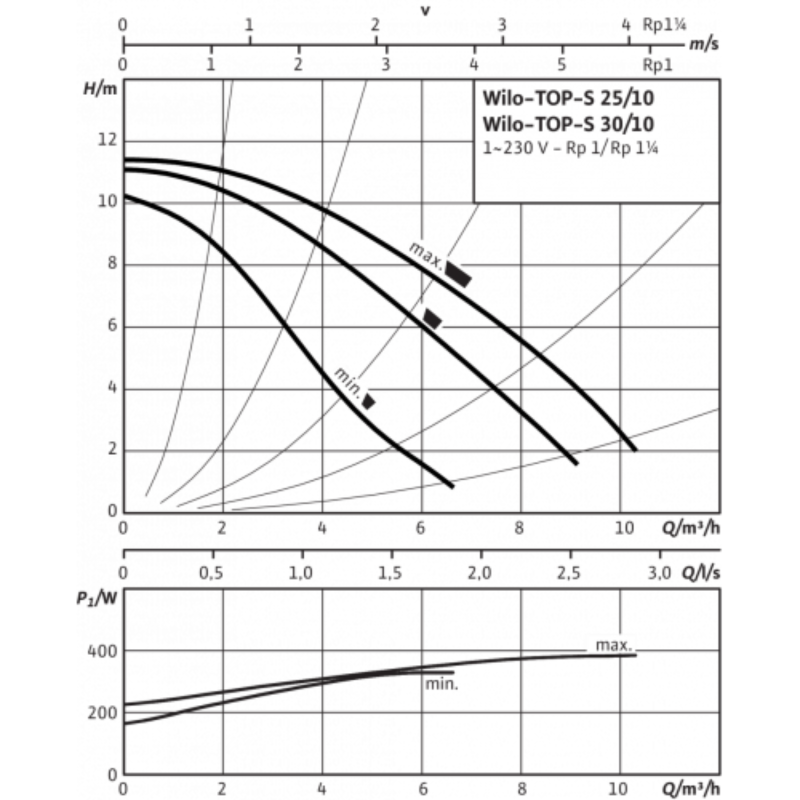

Rotation speed N: 2400/2550/2700 rpm
Power consumption 1~230 V P1: 335/385/390 W
Capacitor: 8/400 VDB
Max. permissible working pressure Pmax: 10 bar

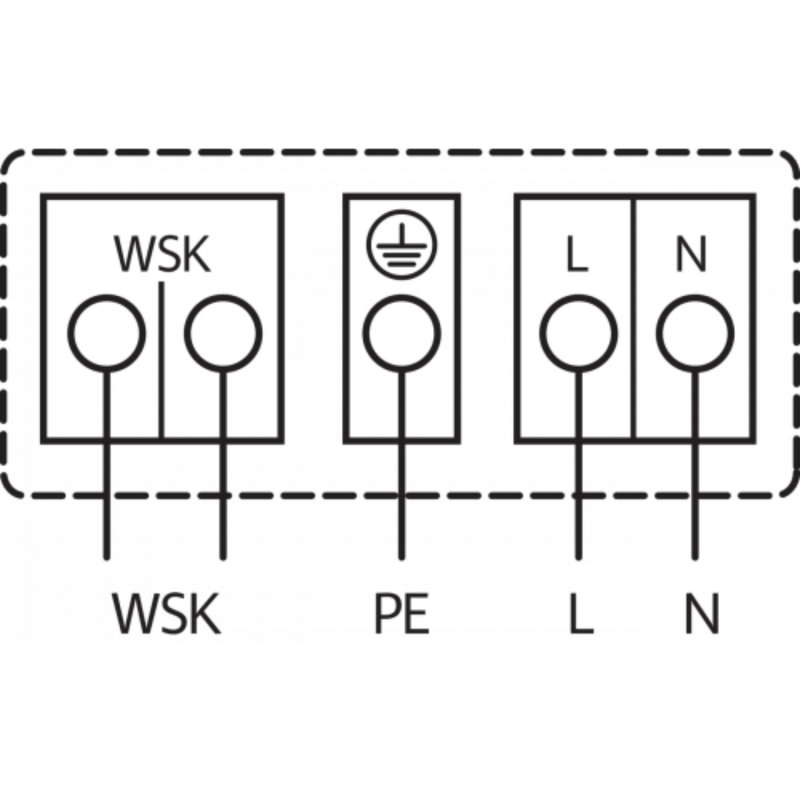

Network connection: 3~230V, 50Hz
Protection class: IP X4D
Thread: G 2"
Threaded pipe connection: Rp 1 1/2 "
Pump shaft: stainless steel (X46Cr13)
Pump body: gray cast iron (EN-GL200)
Bearings: graphite
Impeller: synthetic material (polypropylene -50 GF)
