Wilo TOP-S 25/7 circulation pump

Manufacturer: Wilo

Wilo TOP-S 25/7 circulation pump

(0 review) | Write A Review

225,000AMD

Product Code: 0510

Category: Pumps

Availability: In Stock

Wilo TOP-S is a series of reliable and powerful circulation pumps designed for stable operation in demanding heating systems. They are suitable for use in apartment buildings, commercial facilities, and industrial sites, providing efficient circulation of the heat transfer medium even under prolonged loads. The pumps feature high reliability, long service life, quiet operation, and energy efficiency. German build quality and proven components make the Wilo TOP-S series an optimal choice for professional applications.

Qty

ADD TO CART

Type: Circulation pump
Brand: Wilo
Country: Germany
Color: green, black
Insulation class: H

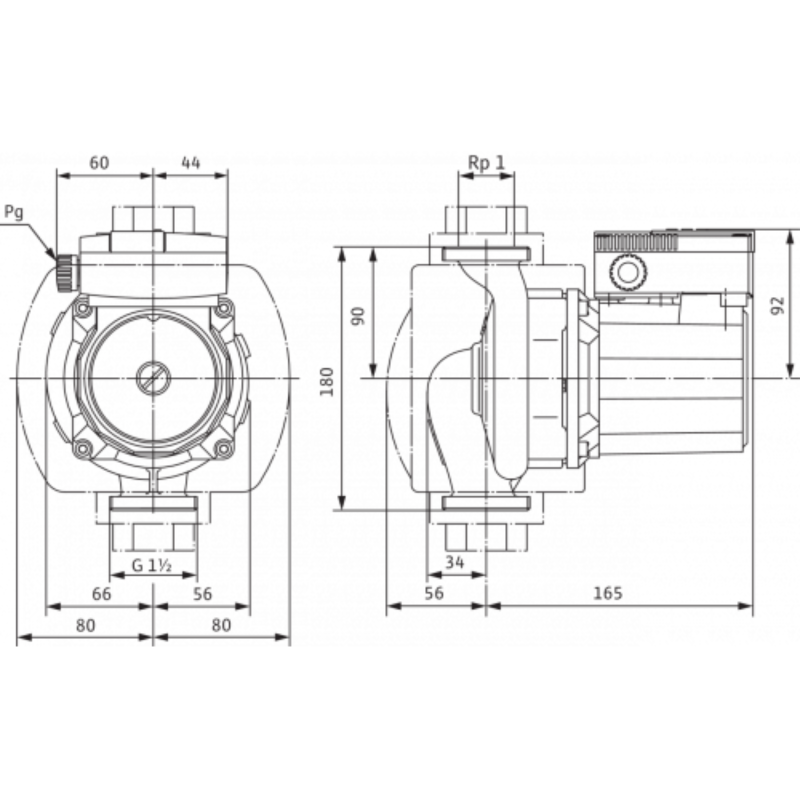

Overall length L0: 180 mm
Weight: 4.8 kg
Minimum inlet pressure at liquid temperature 50°C: 0.5 m
Minimum inlet pressure at liquid temperature 95°C: 5 m
Minimum inlet pressure at liquid temperature 110°C: 11 m
Minimum inlet pressure at liquid temperature 130°C: 24 m
Temperature range at max. ambient temperature +40°C: -20/+130°C (short-term mode 2h: +140°C)
Temperature range at max. ambient temperature +40°C when used with Wilo-C protective module: -20/+110°C
Capacitor, µF: 5/400 VDB
Current at 1~230 V I: 0.62/0.87/0.93 A
Rotation speed N: 1800/2300/2600 rpm
Rated motor power P2: 90 W
Power consumption at 1~230 V P1: 120/175/195 W
Max. allowable operating pressure Pmax: 10 bar
Immunity to interference: EN 61000-6-2
Emitted interference: EN 61000-6-3
Electromagnetic compatibility: EN 61800-3

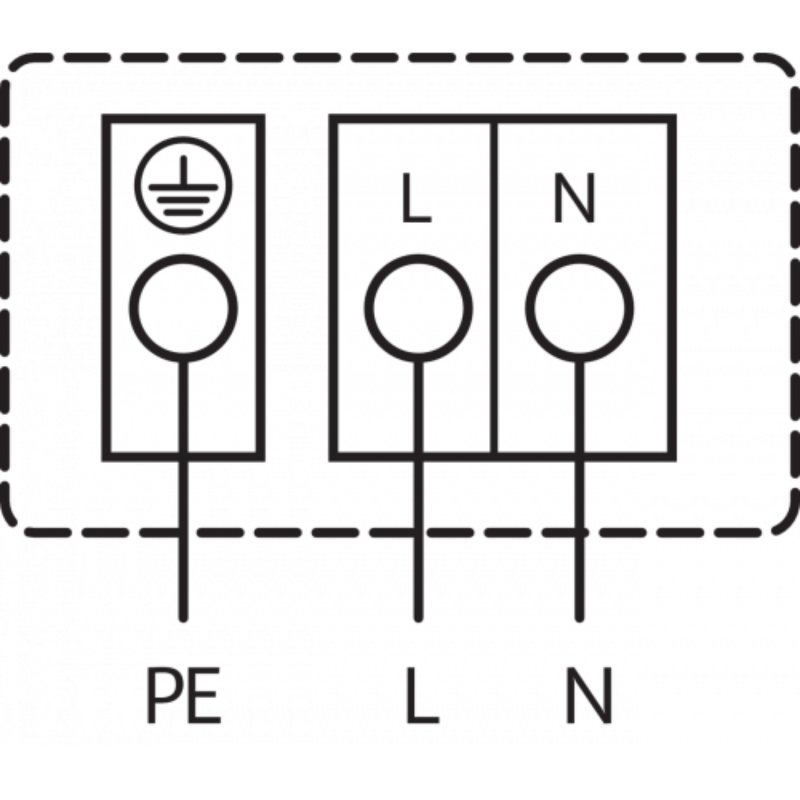

Power supply connection: 1~230 V, 50 Hz
Protection degree: IP X4D
Motor protection: built-in
Threaded cable entry PG: 1×13.5
Thread: G 1 1/2"
Pipe threaded connection: Rp 1"
Pump shaft: stainless steel (X46Cr13)
Pump housing: grey cast iron (EN-GJL-200)
Bearings: metal-graphite
Impeller: synthetic material (polypropylene -50 GF)
