Wilo HiDrainlift 3-24 wastewater pump

Manufacturer: Wilo

Wilo HiDrainlift 3-24 wastewater pump

(0 review) | Write A Review

330,000AMD

Product Code: 0514

Category: Pumps

Availability: In Stock

Wilo HiDrainlift 3-24 is a ready-to-use pump system designed for wastewater removal from showers, sinks, and other sanitary appliances. Its compact design and automatic control ensure quiet and reliable operation. It is ideal for bathrooms, restrooms, and basements where natural drainage slopes are absent. The unit is easy to install and maintain, even in confined spaces.

Qty

ADD TO CART

Type: wastewater pump
Brand: Wilo
Country: Germany
Color: white
Weight: ~3.635 kg
Max. ambient temperature: 40 °C
Pumped liquid temperature T: +5/+35 °C
Max. pumped liquid temperature (up to 5 min): 35 °C
Max. pumped liquid temperature (up to 3 min): 35 °C
Max. operating pressure Pmax: 1 bar
Max. allowable pressure in discharge line p: 0 bar
Max. switch-on volume V: 0.7 l
Min. switch-on level: 65 mm
Min. switch-off level: 45 mm
Total tank volume V: 3.9 l

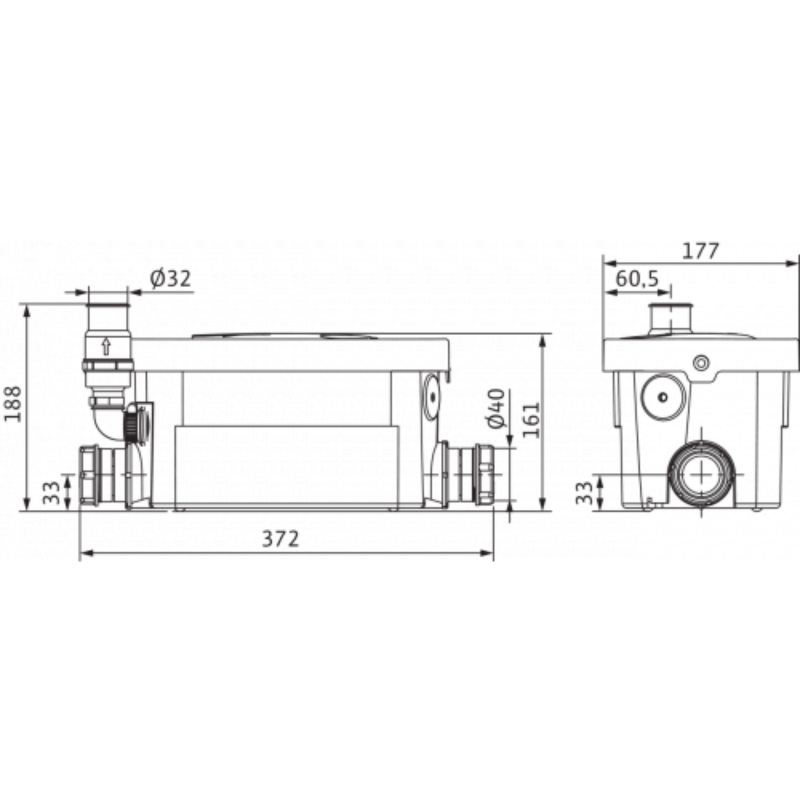

Discharge connection Ø: DN 32
Inlet pipe connection: DN 40
Cable connection type: non-detachable
Plug type: CEE
Mechanical seal: EPDM
Pump shaft: stainless steel 1.4305 [AISI 303]
Tank material: PP
Pump housing: PP-GF30
Motor housing: PP-GF30
Impeller: PA/PPO, glass fiber reinforced (depending on model)
