Wilo Yonos Pico 25/1-6 circulation pump

Manufacturer: Wilo

Wilo Yonos Pico 25/1-6 circulation pump

(0 review) | Write A Review

120,000AMD

Product Code: 0066

Category: Pumps

Availability: In Stock

Wilo Yonos PICO — reliable and energy-efficient circulation pumps for heating systems. Manufactured in Germany, they ensure stable circulation of the heat transfer fluid in radiator systems and underfloor heating. Characterized by quiet operation, compact dimensions, and user-friendly electronic control. The pumps automatically adapt to operating conditions, reduce power consumption, and feature anti-blocking protection. Suitable for installation in private houses and small commercial facilities.

Qty

ADD TO CART

Type: Circulation pump
Brand: Wilo
Country of origin: Germany
Color: Green, gray, black
Insulation class: F

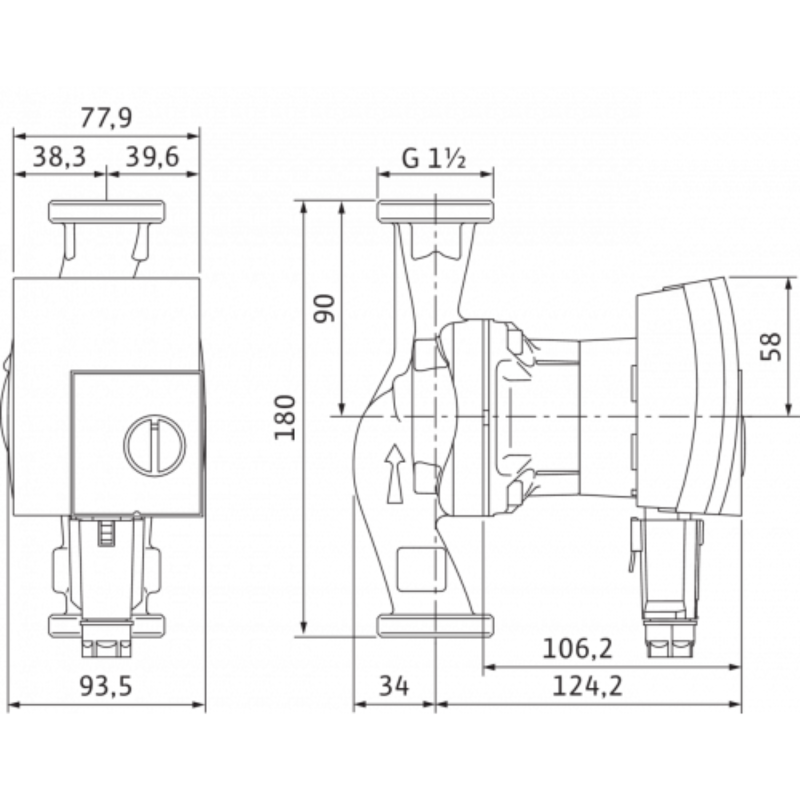

Mounting length L₀: 180 mm
Weight: 2.1 kg
Min. inlet pressure at liquid temperatures of 50°C: 0.5 m
Min. inlet pressure at liquid temperatures of 95°C: 3 m
Min. inlet pressure at liquid temperatures of 110°C: 10 m
Temperature range at max. ambient temperature of +40°C: -10 to +95°C
Temperature range at max. ambient temperature of +25°C: -10 to +110°C
Current consumption I: max. 0.44 A
Rotation speed N: 800–4700 rpm
Rated motor power P₂: 30 W

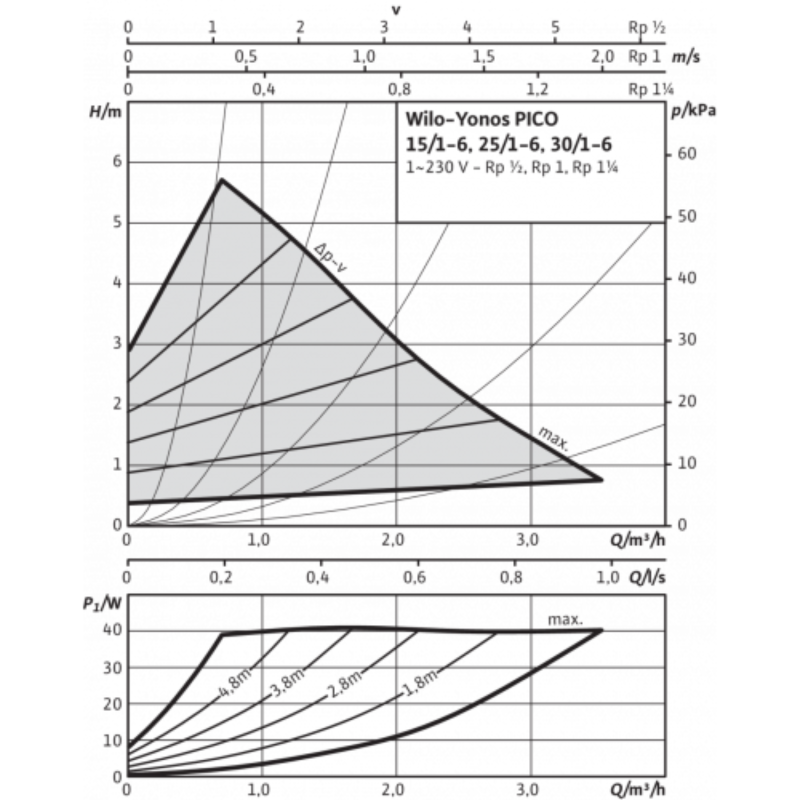

Power consumption P₁: 4–40 W
Energy Efficiency Index (EEI): ≤ 0.20
Max. allowable working pressure Pmax: 6 bar
Immunity to interference: EN 61000-6-2
Emitted interference: EN 61000-6-3
Electromagnetic compatibility: EN 61800-3

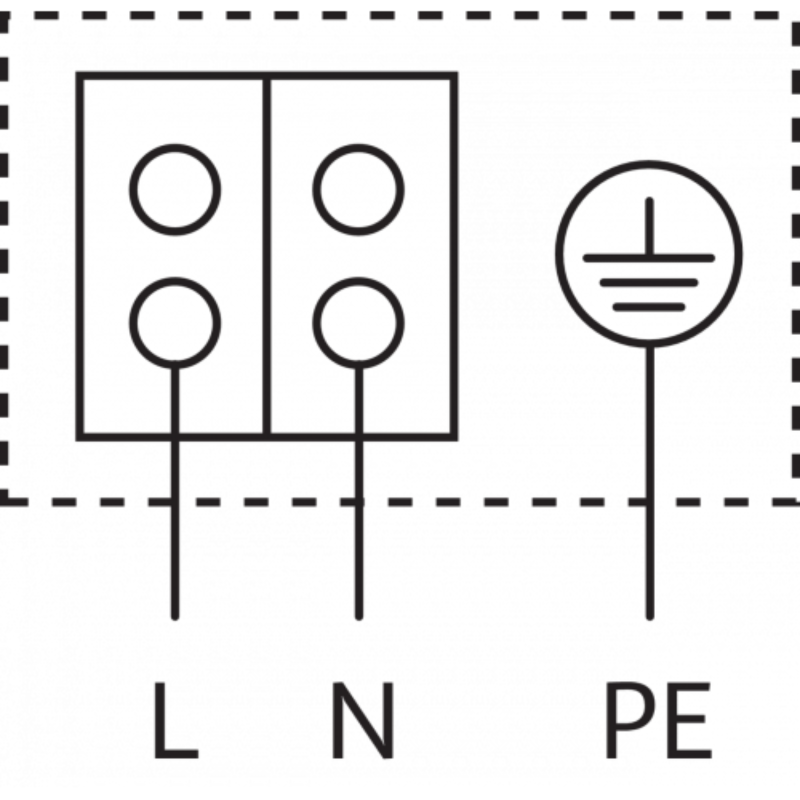

Power supply: 1~230 V, 50/60 Hz
Protection class: IP X2D
Motor protection: Not required (blocking current resistant)
Speed control: Frequency converter (FC)
Nominal internal diameter of the flange: DN 25
Threaded entry for cable connector: 11 PG
Thread: G 1 1/2"
Threaded pipe connection: Rp 1"
Pump shaft: Stainless steel
Pump housing: Grey cast iron (EN-GJL-200)
Bearings: Metal graphite
Impeller: Synthetic material (polypropylene -40 GF)
