Wilo Yonos MAXO 30/0,5-10 circulation pump

Manufacturer: Wilo

Wilo Yonos MAXO 30/0,5-10 circulation pump

(0 review) | Write A Review

345,000AMD

Product Code: 0067

Category: Pumps

Availability: In Stock

Wilo Yonos MAXO 30/0.5-10.0 is a reliable and modern circulation pump, ideal for heating systems in residential buildings, administrative facilities, and commercial properties. It combines high energy efficiency, easy operation, and proven Wilo quality. Thanks to its compact design and intuitive interface, installation and setup are quick and effortless. Yonos MAXO is the choice for those seeking stable system performance without unnecessary costs. Reliability, efficiency, and comfort — all in one solution.

Qty

ADD TO CART

Type: circulation pump
Brand: Wilo
Country: Germany
Color: green, gray, black
Insulation class: F

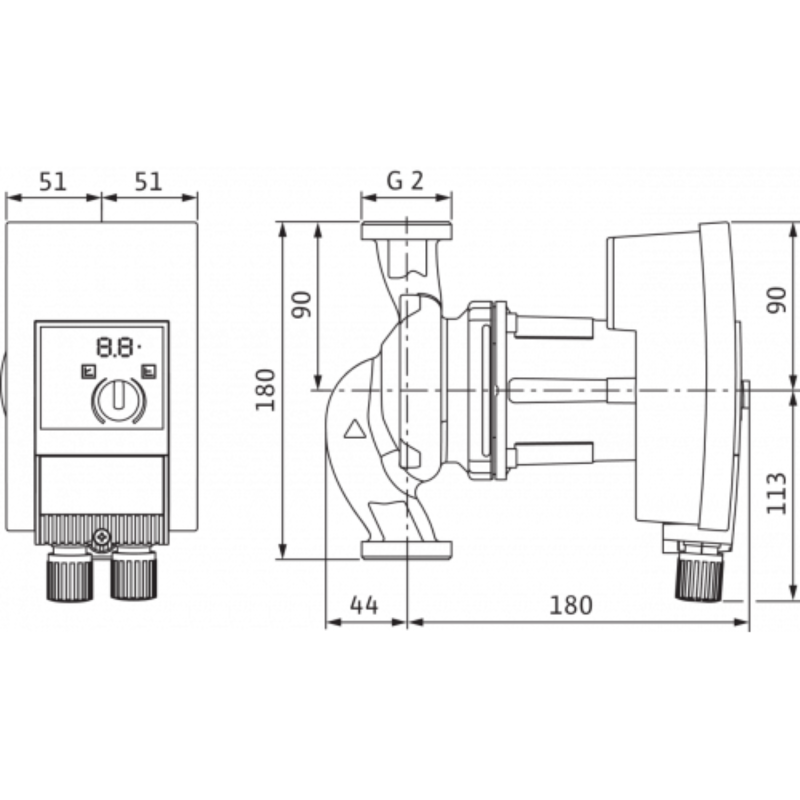

Mounting length L0: 180 mm
Weight: 4.6 kg
Min. inlet pressure at liquid temperatures of 50°C: 3 m
Min. inlet pressure at liquid temperatures of 95°C: 10 m
Min. inlet pressure at liquid temperatures of 110°C: 16 m
Temperature range at max. ambient temperature of +40°C: -20 to -10 … +110°C
Current consumption I: 0.08–1.3 A
Rotation speed N: 1000–4450 rpm
Rated motor power P2: 0.14 W
Power consumption P1: 5–190 W
Energy efficiency index (EEI): ≤0.20
Max. allowable working pressure Pmax: 10 bar
Immunity to interference: EN 61800-3;2004+A1;2012 /industrial environment (C2)
Emitted interference: EN 61800-3;2004+A1;2012 /residential areas (C1)

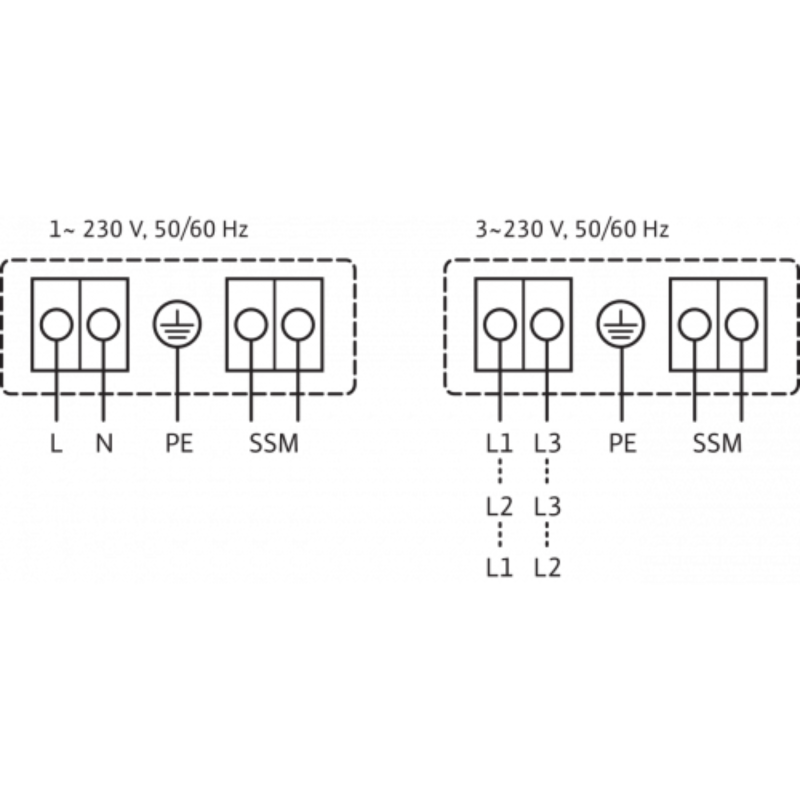

Power supply: 1~230 V, 50/60 Hz
Protection class: IP X4D
Motor protection: built-in
Speed control: frequency converter (FC)
Threaded entry for cable PG: M20x1.5
Thread: G 2"
Threaded pipe connection: Rp 1 1/4"
Pump shaft: stainless steel (X39CrMo17-1)
Pump housing: grey cast iron (EN-GJL-200)
Bearings: metal graphite
Impeller: synthetic material (PPE -30 GF)
